4 video and 4 alarm inputs
SMS notification in the case of alarm
resolutions up to 640x480 pixels
GSM modem built in, optionally external modem (RS232)
client software for PC/XP and GSM phones with Symbian Series60 OS

Telmoss system includes central unit, dialup video transmitter, with built in GSM engine and combination of client applications, one for PC computer running on Windows XP and the other for GSM smart phones running on Symbian Series60 OS. The system itself is dedicated for remote video surveillance, mainly at the sites where fix phone line is not installed (e.g. dislocated objects the mountains) or simply for vehicle observation. The device supports 4 alarm (dry contact) inputs which are logically joined to 4 video inputs. So users will be notified about any alert, any time, any where, simply by SMSes sent to their GSM mobile phone. In that case they can see "in live", on their mobile phone LCD, what really happened, watching remotely either live images or stored images from archive.

PAL, SECAM and NTSC video standards supported
4 video inputs
capturing resolution: 160x120, 320x240 and 640x480
max.image size: 160x120 (Symbian OS phones) and 320x240 (PC/XP)
5 selectable predefined compression levels
B/W and color mode
internal memory for up to 1000 images (320x240pixels)
activity video detection embeded algorithm
4x digital zoom
date/time stamp

Image examples (320x240, 5th compression level)

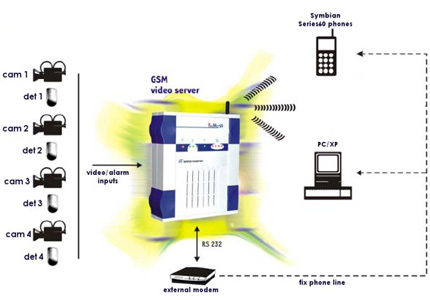

system connection structure

PLMN: GSM 900/1800 and PCS 1900 MHz, CSD up to 14.4kbps
RS232 to standard external modem (PSTN) or direct, "null modem" cable to another DTE (e.g.PC)

up/down connector boards

SMA GSM antenna connector
SIM socket (push-push system)
DSUB 9pin male connector for RS232 connection (external modem or direct cable)
DSUB 9pin female connector for 4 alarm (dry) connections
12V DC power supply connector
4 BNC connectors for video analogue input

all system parameters setup performed through client applications
PIN control (up to 4 different users)
battery RTC (time/date), remote setup
SMS reception in the case of alarm up to 4 different destinations
still image recording in the case of alarm
alarm selection between video detection and external sensors

Telmoss PC / PC XP OS client application screenshot

Telmoss mobile / Symbian Series60 OS application screenshot

Telmoss mobile was tested on following Symbian OS phones:

Nokia 3650/3660	Nokia 7610	Nokia NGage	Nokia 7650
Nokia 6600	Siemens SX1	Nokia 6260	Nokia 6670
Nokia 6680	Nokia 3230	Nokia N90	Nokia N70

stand alone applications running either on PC or on user's mobile phone
full control over the system (live images, browsing through archive, settings etc.)
no Internet, no GPRS - direct CSD "private" connection between client and transmitter
storing received images directly to client device (PC or mobile phone memory)
multi connections: one client -> more transmitters
for the list of all Symbian OS phones avaliable click here

Content of Telmoss package

Telmoss unit
power supply adapter (220V/12V)
GSM antenna
CD with PC/XP and Symbian OS applications
manual
warranty leaflet
